    MIG Welder 500i Pack Air 304 Feed Warrior ESAB

    $ 13,650.02 13650.02 AUD $ 17,062.53

    $ 15,511.39

    Not Available For Sale

      This combination does not exist.

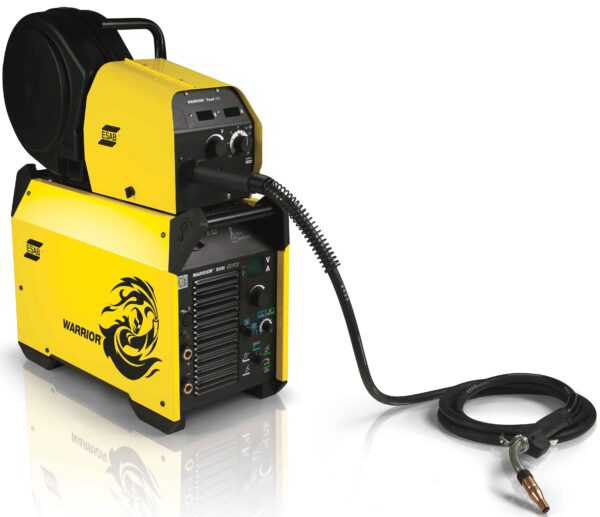

      The ESAB Warrior 500i brings the outstanding arc performance and energy savings you expect from an inverter. Along with increased energy efficiency and more power from a lighter, smaller, and more portable unit, Warrior provides the simple functionality welders want at a competitive price.

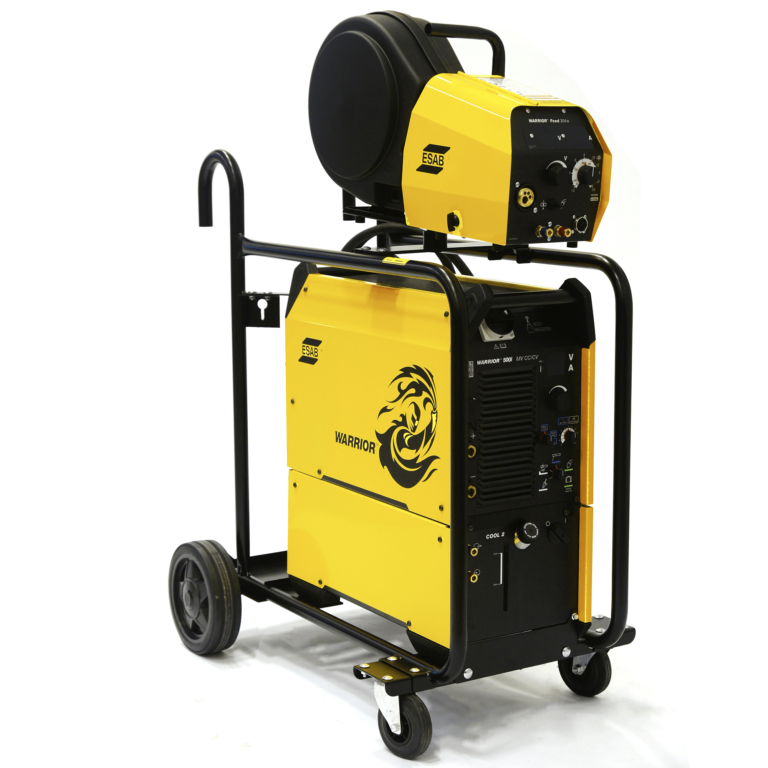

      • Comes with Warrior Feed 304, Trolley, Cables & Mig Torch
      • Multi Process – MIG/TIG/Stick/Gouging
      • Designed to be durable & rugged
      • 500amps @ 60% Duty Cycle
      • Easy to use, intuitive user interface

      Perfect for long runs across a variety of applications and delivers 500amps @ 60% Duty Cycle. Warrior has been designed to be durable and rugged, with an IP23 rating for outdoor and indoor use in rough environment.
      Easy-to-use, clear and intuitive user interface for everyone to get started quickly, including glove-friendly knobs make adjustments quick and easy.


      • ESAB Warrior 500i CC/CV – 0465350885
      • ESAB Warrior Feed 304 – 0465250881
      • ESAB Trolley – 0465510880
      • ESAB 10m Interconnection Cables – 0459836882
      • Tweco 4, 3.6m PSF 405 Mig Torch – OTWX415/3545


      Mains Supply, VAC, 3 ph 50/60Hz
      380-400-415, +/-10%

      Mains cable, Ø mm2
      4x6

      Fuse, Motor Start Type or Circuit Breaker Type C, A
      32

      Maximum Load
      100% duty cycle A/V, 3ph: 400/36 | 60% duty cycle A/V, 3ph: 500/40

      Current Range
      MIG/FCAW: 16-500A | Stick (MMAW): 16-500A | TIG: 5-500A

      Open Circuit Voltage
      78V

      Idle Power
      120W

      Efficiency at Max. Current
      88%

      Enclosure class
      IP23

      Dimensions
      712L x 325W x 470H mm

      Weight
      52kg

      Operating Temperature
      -10 to +40°C

      Warrior Feed 304: Power Supply
      42VAC

      Warrior Feed 304: Wire Spool Capacity
      18kg

      Warrior Feed 304: Max. Spool Diameter
      300mm

      Warrior Feed 304: Dimensions (Including Bobbin Cover)
      675L x 264W x 218H mm

      Warrior Feed 304: Wire Dimensions
      Steel: 0.6-1.6 | Stainless Steel: 0.6-1.6 | Aluminium: 0.8-1.6 | Cored Wire: 0.9-1.6

      Warrior Feed 304: Enclosure Class
      IP23
